1-776280-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-776280-1
Datasheet:
Description:

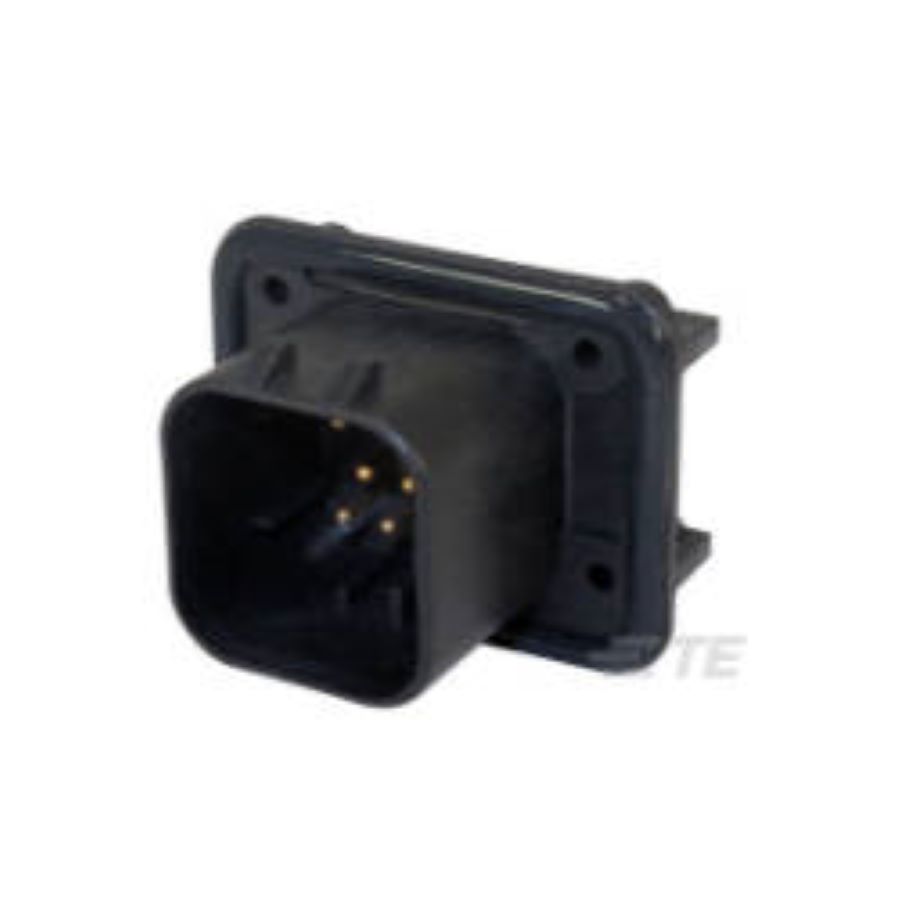

Automotive Connectors Through Hole Number of Positions:8 Male
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 40.80002 mm |
| Width | 37.9 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 32.1 mm |
| Packaging | Bulk |
| Depth | 37.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 3 |
| Row Spacing | 2 mm |
| Housing Material | Polybutylene |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| PCB Thickness | 1.5748 mm |
| Contact Gender | Male |
| Tab Thickness | 1.3 mm |
| Number of Signal Positions | 8 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
Stock: 388
Distributors
pcbx
pcbxUnit Price$6.79669
Ext.Price$6.79669
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.79669 | $6.79669 |
| 10 | $6.62143 | $66.21430 |
| 25 | $5.29458 | $132.36450 |
| 50 | $5.11075 | $255.53750 |
| 100 | $4.93330 | $493.33000 |
| 300 | $4.76201 | $1428.60300 |
| 500 | $4.59667 | $2298.33500 |
| 1000 | $4.43709 | $4437.09000 |
